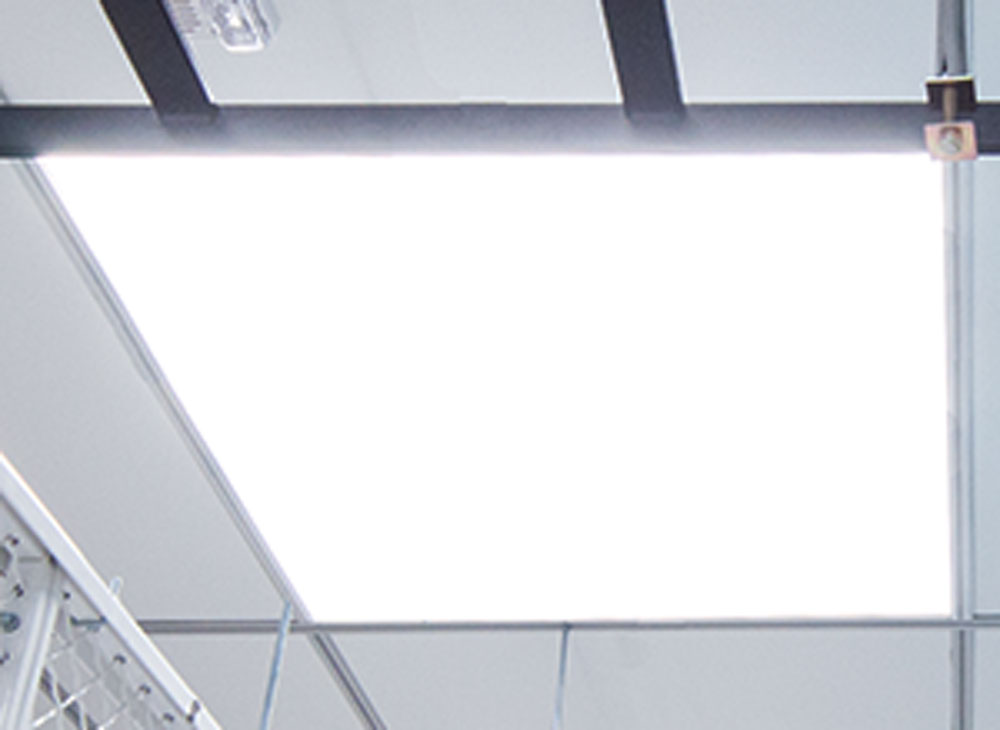

DataLUME LED Description

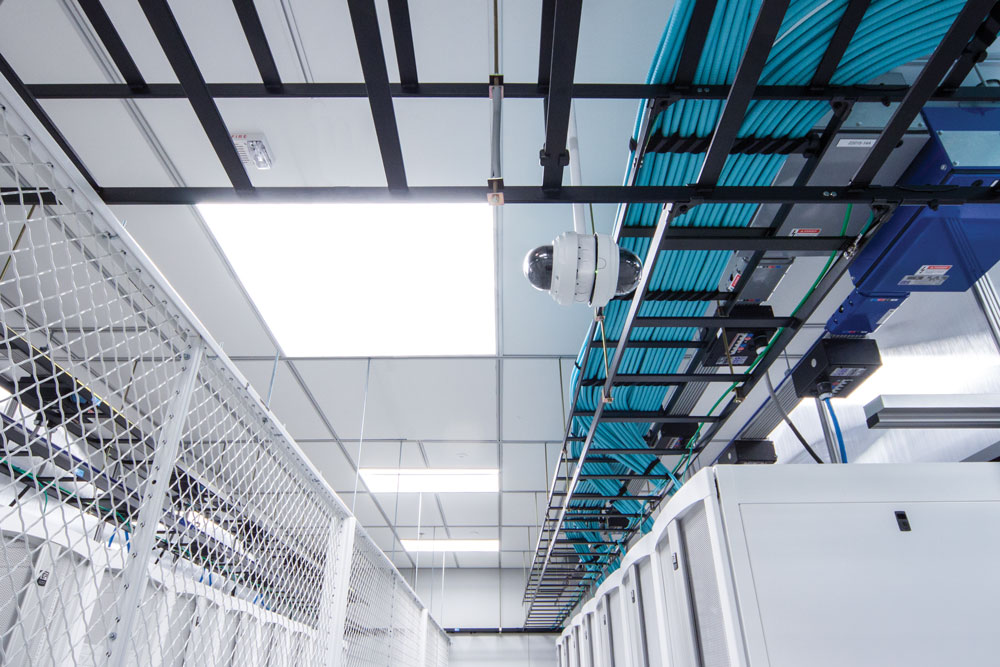

Specification grade, low profile troffer for use in Gordon DG 1.5 Data Center Ceiling Grid. Troffer is ideal for Data Centers requiring general illumination with recessed configuration.
Features
Housing fabricated using 22 gauge pre-painted steel. Finish is high-reflectance white (90% reflective efficiency.) Wiring knockouts are provided on back and end of housing. Lens is held with hinged aluminum door frame, hinges downward on either side and held closed by two positive cam latches.
Clear 0.125 A12 Acrylic. Lens is standard. Door hinges from either side and is field reversible. Dual access plates to simplify wiring. Lamps are included and are factory installed.
